Chapter 4 Visualisation

4.1 The final reading dataset

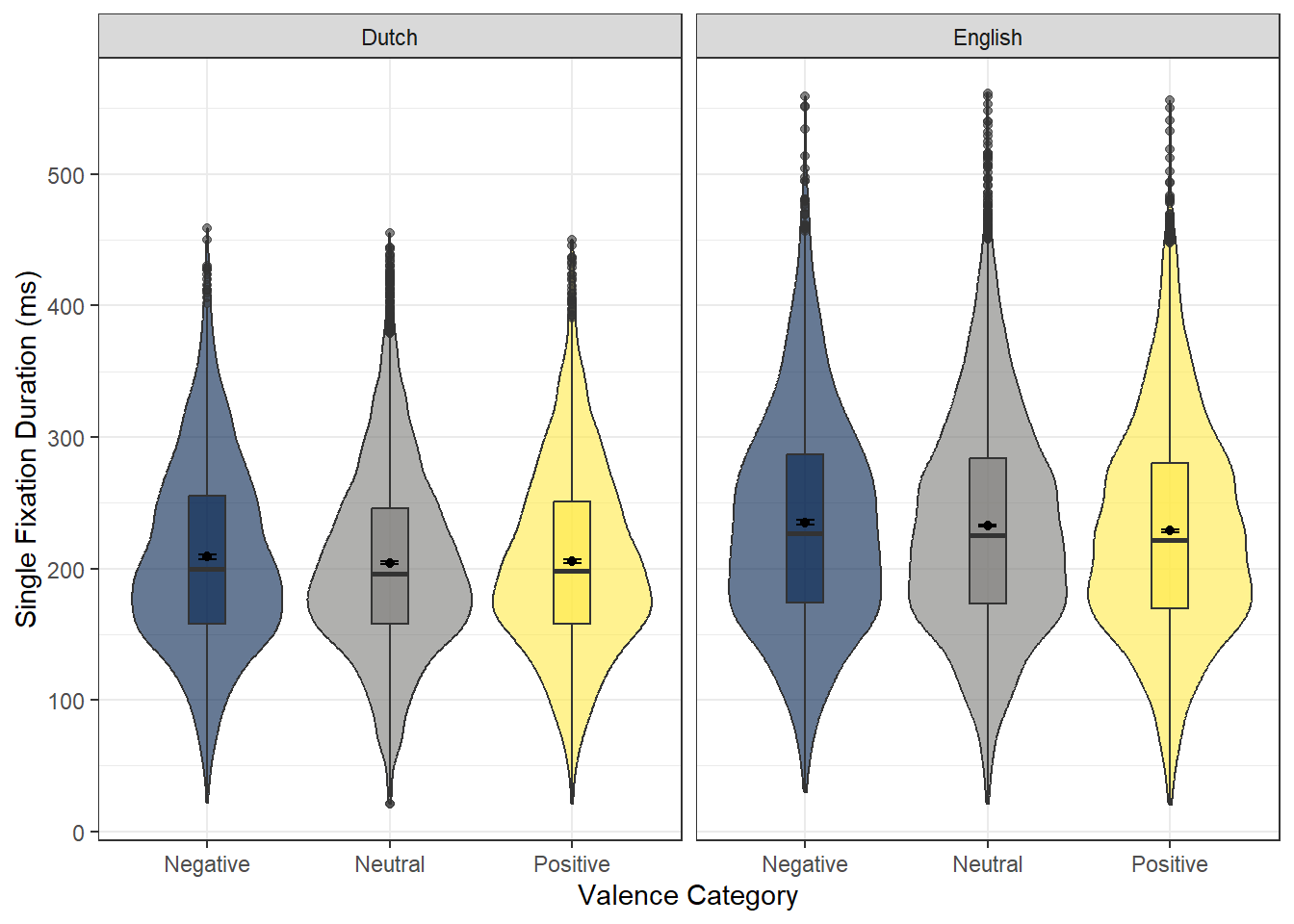

A violin-box plot is created for the final reading dataset for analysis.

ggplot(ReadingData_ENandNL, aes(x = V_Category, y = WORD_FIRST_FIXATION_DURATION, fill = V_Category)) +
  geom_violin(alpha = .6) +
  geom_boxplot(width = .2, alpha = .6) +
  stat_summary(fun = "mean", geom = "point",
               position = position_dodge(.9)) +
  stat_summary(fun.data = "mean_se", geom = "errorbar", width = .1,
               position = position_dodge(.9))+
  scale_x_discrete(name = "Valence Category") +
  scale_y_continuous(name = "Single Fixation Duration (ms)") +
  scale_fill_viridis_d(option = "E") +
  facet_wrap(~Language) +
  theme_bw() +
  guides(fill = FALSE)

4.2 The baseline model (mod)

I created a Blobbogram for Generalised linear mixed-effect model.broom.mixed::tidy() works on LMM to create a model summary. I then added factor to split the data for colours.

modelsummary_vis <- broom.mixed::tidy(mod, effects = c("ran_pars", "fixed"),scales = NULL, ran_prefix = NULL, conf.int = TRUE, conf.level = 0.95, conf.method = "Wald") %>%
  filter(effect =="fixed") %>% filter(term!="(Intercept)")

#Add factor to split the data for colours
modelsummary_vis$Type <- as.factor(ifelse(str_detect(modelsummary_vis$term, ":"), "Interaction", "Main effect"))

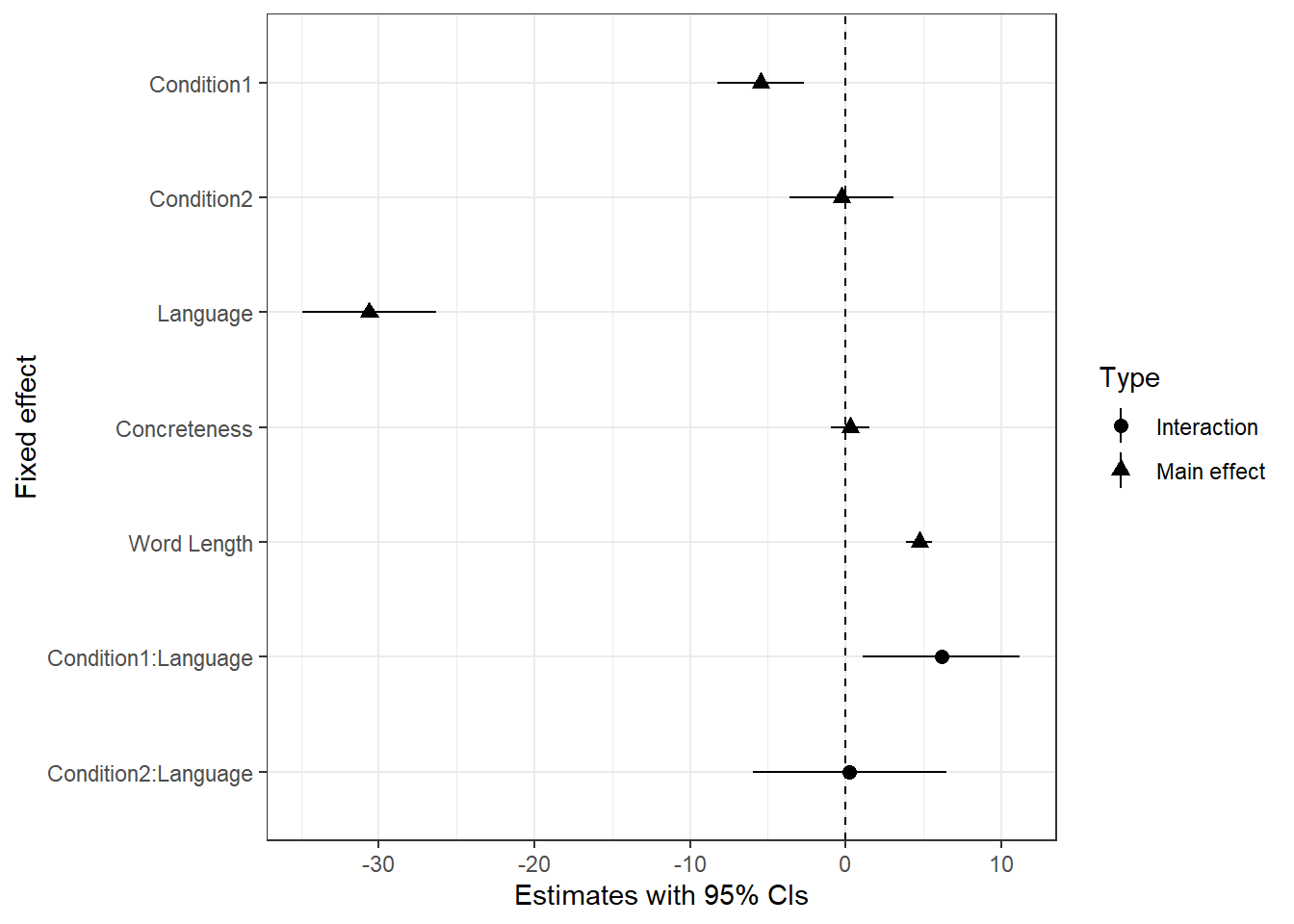

Below ggplot() coding was run to generate a Blobbogram. Condition1 refers to Positive vs Neutral; Condition2 refers to Negative vs Neutral. The minimal theme is applied to make it black & white = colourblind friendly.

ggplot(modelsummary_vis, aes(x = term, y = estimate, ymin = conf.low, ymax = conf.high, shape = Type)) +
  geom_pointrange() +
  ylab("Estimates with 95% CIs") +
  geom_hline(aes(yintercept = 0), linetype = "dashed") +
  scale_x_discrete(limits = c("V_Category_NeuNeg_dev:Language_dev", "V_Category_NeuPos_dev:Language_dev", "WORD_LENGTH", "Conc_Mean",  "Language_dev", "V_Category_NeuNeg_dev", "V_Category_NeuPos_dev"),
                   labels = c("Condition2:Language", "Condition1:Language", "Word Length", "Concreteness", "Language", "Condition2", "Condition1")) +
  xlab("Fixed effect") +
  coord_flip() +
  theme_bw()

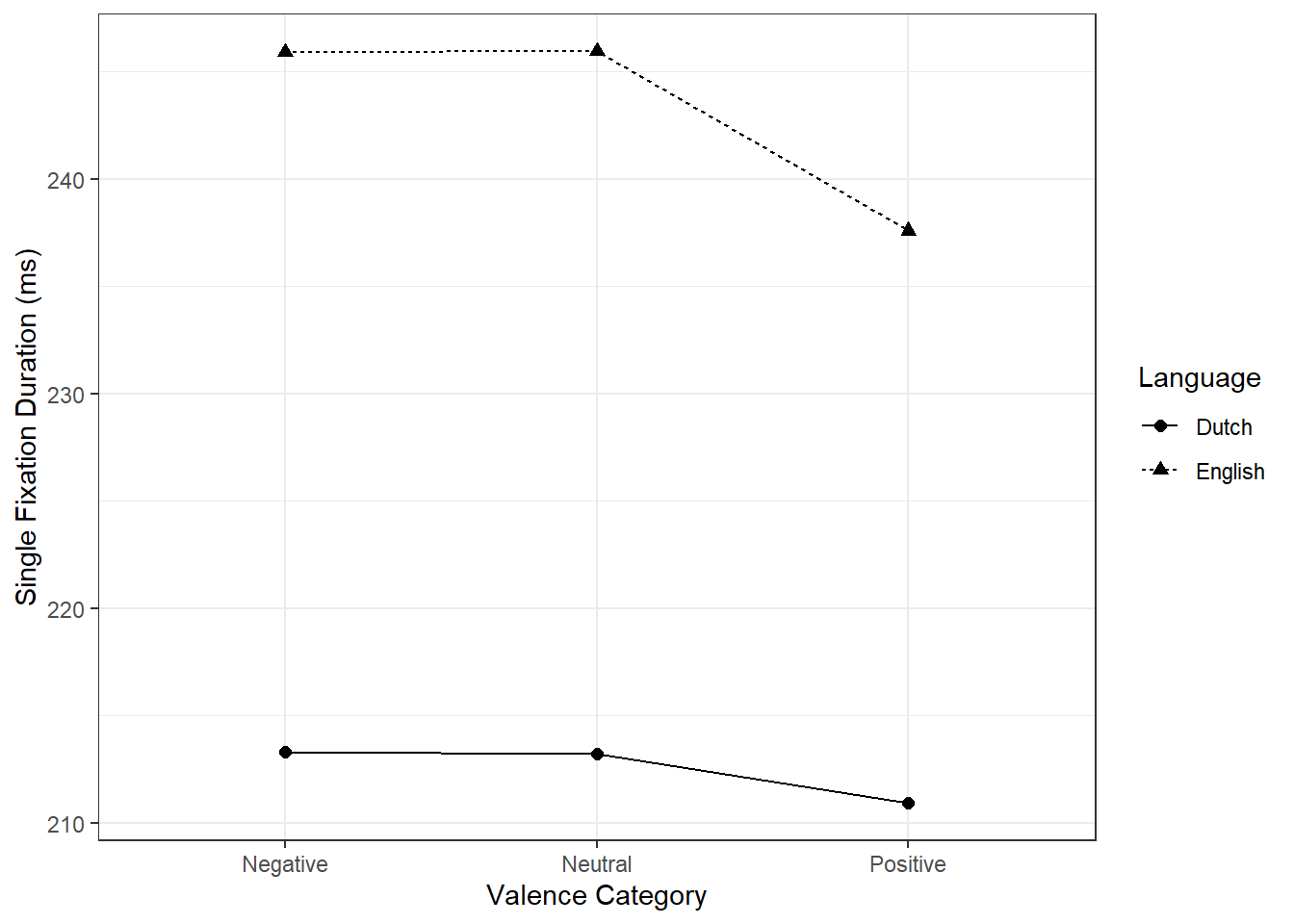

4.3 emmip: Interaction-style plots for estimated marginal means

plot_dat <- emmip(mod2, Language~V_Category, plotit = FALSE)

ggplot(plot_dat, aes(x = xvar, y = yvar, group = tvar, linetype = tvar, shape = tvar)) +
    geom_point(size = 2) +
    geom_line() +
    labs(x = "Valence Category", y = "Single Fixation Duration (ms)", linetype = "Language", shape = "Language") +
    theme_bw()

4.4 Assumption Checking

  1. Linearity

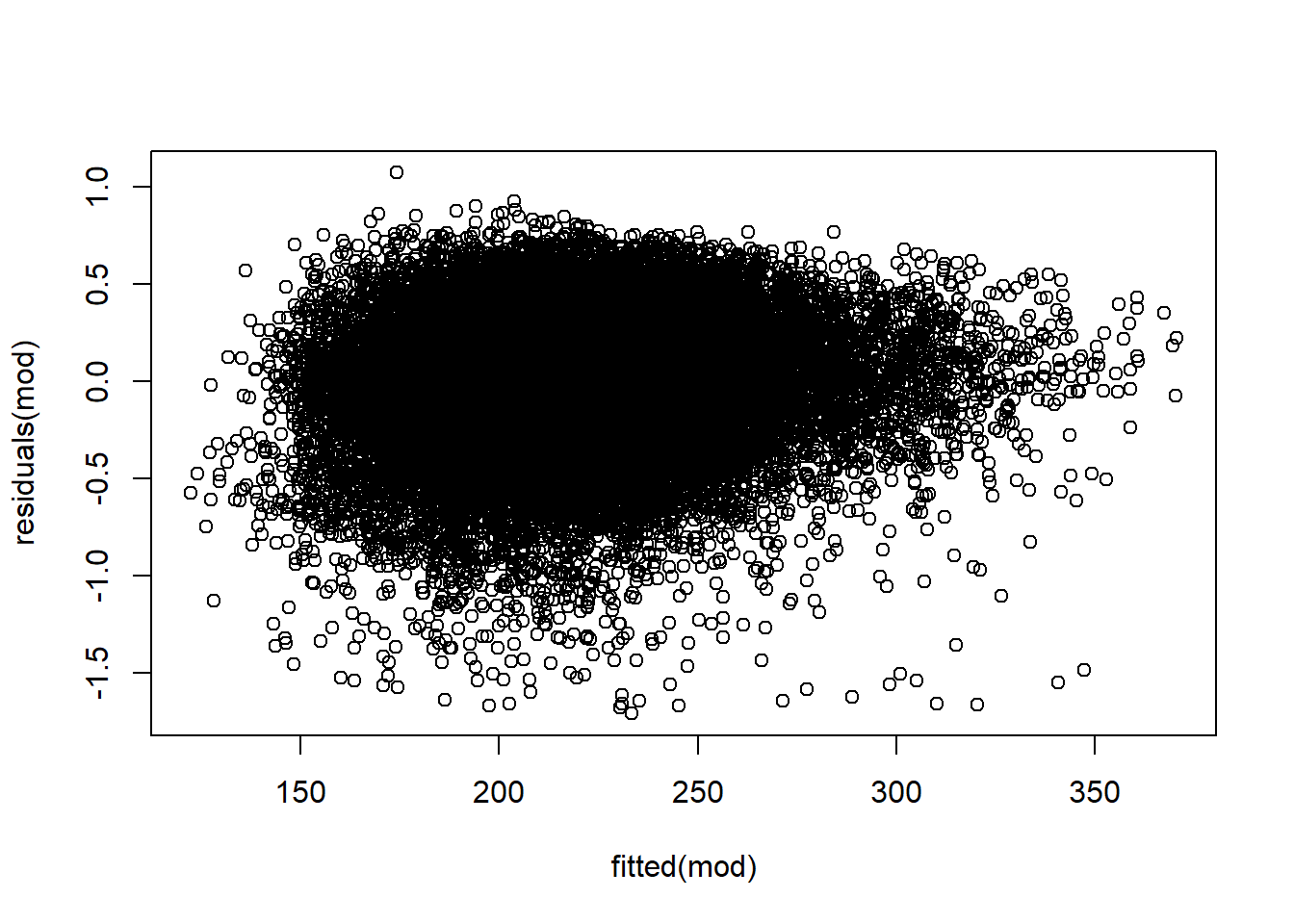

plot(fitted(mod), residuals(mod))

  1. Absence of collinearity

  2. Homoskedasticity Again, this can be checked with residual plots.

plot(fitted(mod), residuals(mod))

  1. Normality of residuals

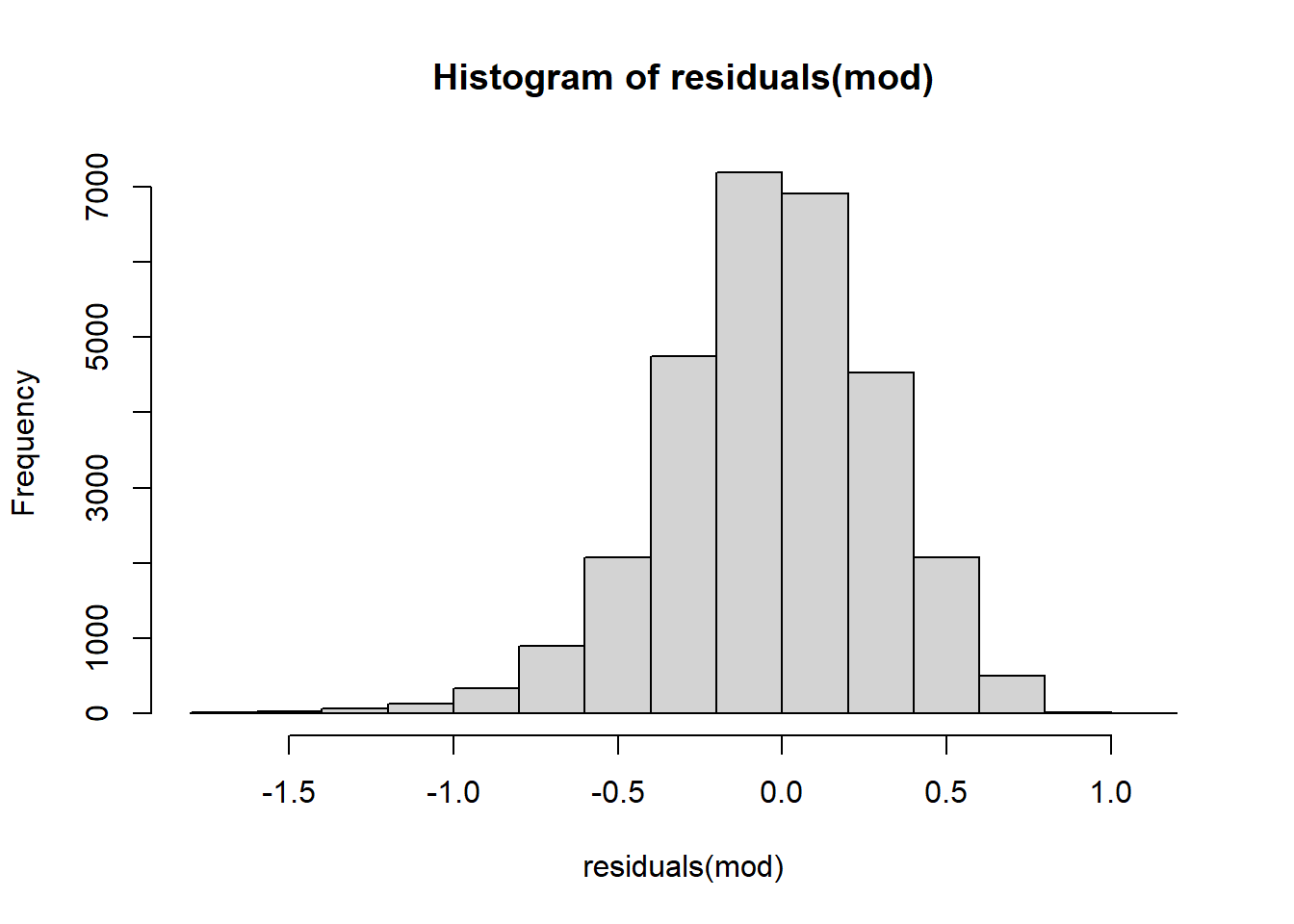

hist(residuals(mod))

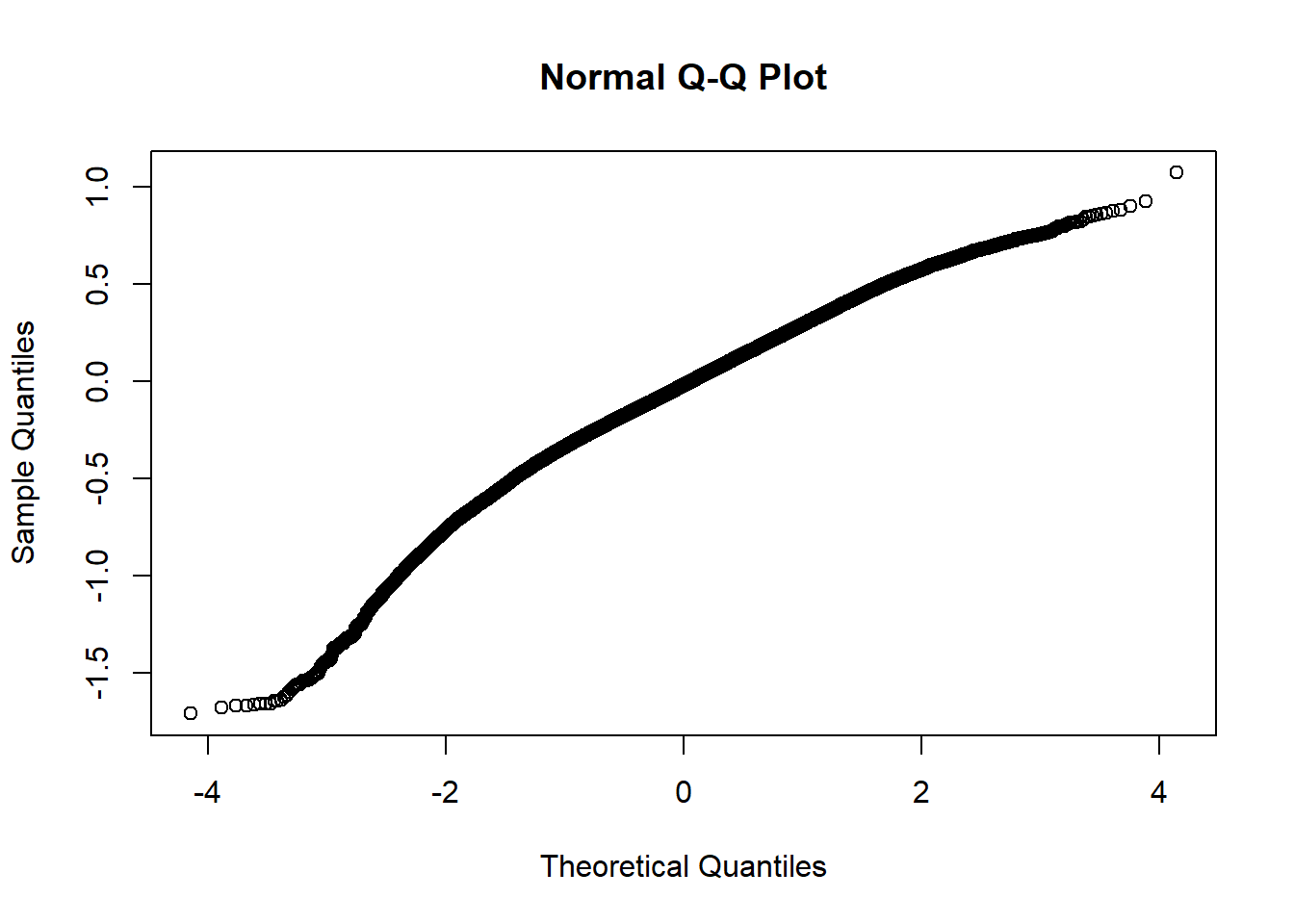

qqnorm(residuals(mod))

  1. Absence of influential data points This assumption is met with visual investigation of violin boxplot.

  2. Independence This assumption is met with modeling (fixed effects: Valence cagetory, Language; random effects: Concreteness, Word Length).
